Complies with EU standards
Attributes
PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETGplastic processed
260Clamping Force (kN)
Automaticautomation
Customized to customer needsvoltage
Long Service Lifekey selling points
1 Yearwarranty
output (kg/h):130 kg/h
place of origin:Jiangsu, China
power (kw):100
weight (t):14
video outgoing-inspection:Provided
machinery test report:Provided
core components:PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
brand name:tongda
dimension(l*w*h):5*2.4*3.8
plc brand:Mitsubishi
Screw L/D Ratio:25
screw diameter (mm):90 mm
No. of Screw Heating Zone:4
screw heating power(kw):17.4 kW
extruder motor power(kw):37 kW
mold platen size(width)(mm):700 mm
mold platen size(height)(mm):950 mm
air pressure(mpa):0.6 MPa
air comsumption(m³/min):1 m³/min
die head heating power(kw):21 kW
Rotary Cylinder Brand:FESTO
Station:Single
Suitable bottle:1-50L

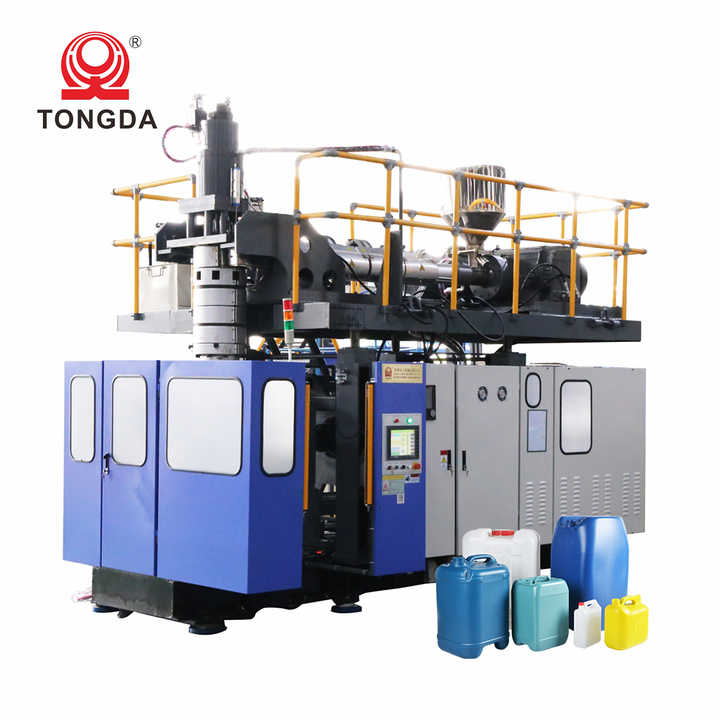

Key words:Automatic Extrusion Blow Moulding Machine
Packing:Wooden
Use:Hollow Moulding
Parison Control:MOOG
Max. Size of Mold:700*950
Hydraulic valve:Yuken
Color:Blue
