Attributes
PP, HDPE, PE, EVA, PE/PP, HDPE/PPplastic processed
350Clamping Force (kN)
Automaticautomation
380V/220V/CUSTOMIZEDvoltage
stable Performancekey selling points
2 Yearswarranty
No. of Screw Heating Zone:4
plc brand:Siemens
core components:PLC, Gearbox, Motor, Pump
machinery test report:Provided
video outgoing-inspection:Provided
output (kg/h):200 kg/h
place of origin:Jiangsu, China
power (kw):47
weight (t):13.8
brand name:GS MACHINERY
dimension(l*w*h):4.6*2.5*3.8M
Screw L/D Ratio:30
screw diameter (mm):90 mm
screw heating power(kw):21.6 kW
extruder motor power(kw):45 kW
mold platen size(width)(mm):880 mm
mold platen size(height)(mm):780 mm
air pressure(mpa):0.8 MPa
air comsumption(m³/min):0.6 m³/min
die head heating power(kw):22 kW
model number:GSB90
Blow Moulding Type:Extrusion Blow Moulding

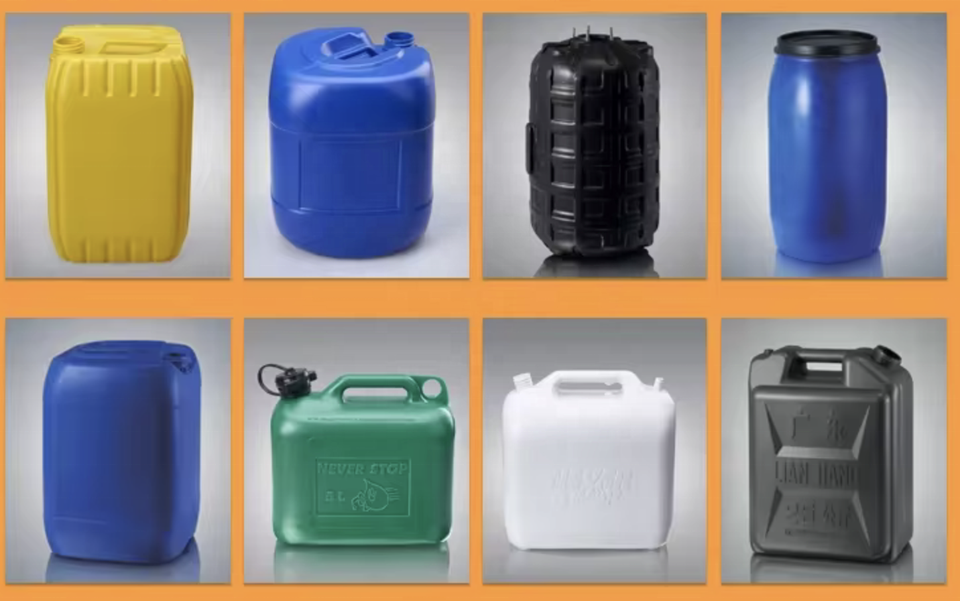

Suitable bottle:20L 25L 30L 50L 60L Bottle
Station:Single Sation
Material application:HDPE LDPE PP
Hydraulic Valve:Japan Yuken
Blowing type:bottom blowing
Processing Type:Hydraulic Extrusion Blow Molding
Parison Control:Japan MOOG 200 Points
die head type:accumulator head

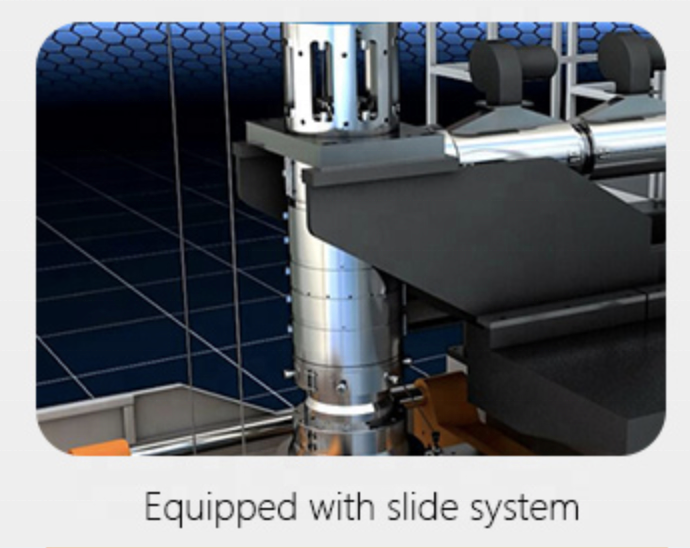

head function:move front and back flexibly
