Attributes
Customized to customer needsvoltage
270Clamping Force (kN)
130 kg/houtput (kg/h)
Jiangsu, Chinaplace of origin
Automaticautomation
38power (kw)
weight (t):11.3
video outgoing-inspection:Provided
machinery test report:Provided
core components:PLC, Engine, Gearbox, Motor, Pump
plastic processed:PP, HDPE, PC, ABS, PE, ABS/PP, PE/PP
brand name:Dawson
dimension(l*w*h):4.8*3.4*3.6m
plc brand:WiseTech
Screw L/D Ratio:24
screw diameter (mm):80 mm
No. of Screw Heating Zone:3
screw heating power(kw):9 kW
extruder motor power(kw):30 kW
mold platen size(width)(mm):660 mm
mold platen size(height)(mm):680 mm
air pressure(mpa):0.8 MPa
air comsumption(m³/min):2.2 m³/min
die head heating power(kw):6 kW
key selling points:Long Service Life
warranty:1 Year
model number:DSB80-30L
View Strip System:available
Motor Type:Hydraulic servo motor
Driven Type:Hydraulic oil
Layer:1~4 layers
Suitable Material:HDPE, LDPE, PP
Product Usage:Lubricant oil, Palm oil, Chemicals, Detergent ...
Bottle Weight:100g ~ 1500g
Clamping Type:Toggle Type Clamping System
PLC:WiseTech
Parison Control:MOOG 100 Point

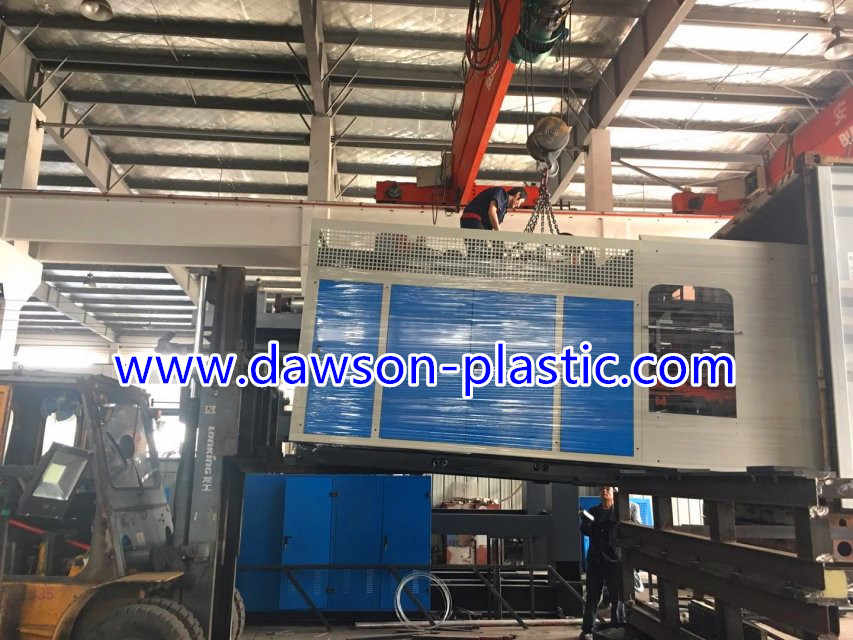

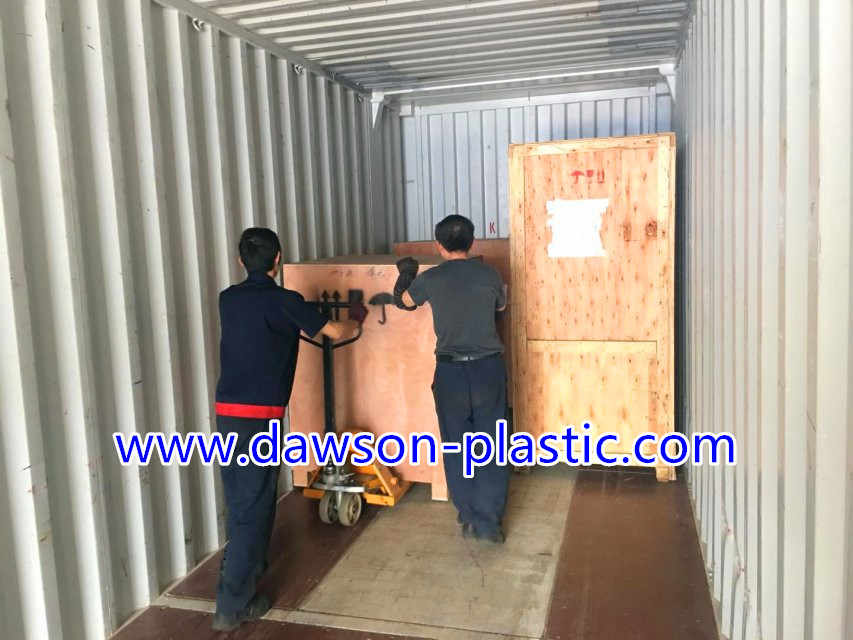

Packaging Details:Injection molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos of whole delivery will be sent to our customers for reference.
Selling Units:Single item
Single package size:40X40X60 cm
Single gross weight:2.000 kg
Supply Ability:20 sets per Month
